Fire-Rated Doors and Counter Doors
Commercial Doors

In Overhead Door Company of Central Jersey we offer a wide array of fire-rated doors. These doors are designed to close automatically in the event of a fire or alarmed event.

Our fire-rated doors are available for service door and counter applications in commercial, industrial, institutional and retail projects. They will meet the most demanding fire safety standards, unusual opening sizes, and discerning aesthetic requirements.

We provide fire doors with UL or FM labels and are listed for both masonry and non-masonry applications.

FIRE-RATED DOOR:

Fire-Rated Door Model 630

Fire-Rated Door ​Model 630

The FireKing® Fire-Rated Door ​Model 630 is ideal for projects requiring a listed rolling service fire door available in labels up to 4 hours, for mounting in masonry, steel or wallboard. This fire-rated service door also offers the choice of galvanized or stainless steel in 18-, 20- or 22 gauges, as well as flat or curved slat profiles with approximately 200 optional powder coat color options - making this reliable, fire-rated door as strong and durable as it is aesthetically pleasing.

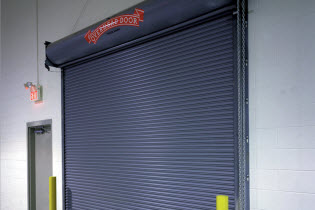

The FireKing® Fire-Rated Door Model 631 is an ideal choice for projects requiring a listed rolling service fire door where both safety and economy are priorities. This 24 gauge steel door is available in up to a 4-hour label for doors up to 152 sq ft (14121 sq m). A UL oversize label is available for doors over 152 sq ft (14121 sq m), but less than 12' (3658 mm) in height. Fire-Rated Door Model 631

Fire-Rated Door Model 631

Fire-Rated Door Model 634

Fire-Rated Door Model 634

​​​​​​​​​​​​​​​The FireKing® Fire-Rated Door Model 634 are the highest-rated fire doors we offer and are ideal for projects requiring a listed rolling service fire door. These doors are available with a 4-hour label for openings up to 152 sq. ft. (14121262 sq mm). A UL oversize label is available for openings up to 683 sq ft (63452 sq m).​
 ​
The FireKing® Insulated Fire-Rated Door Model 635 is a rolling insulated fire door that offers the triple benefits of insulation, fire protection and sound attenuation. This one door eliminates the need for separate fire and insulated doors. . This door offers the protection of a fire door combined with the energy-efficiency and sound transmission control of an insulated door.  Fire-Rated Door Model 635Insulated Fire-Rated Door Model 635

Contact Our Team


FIRE-RATED COUNTER DOOR:

Fire-Rated Counter Door Model 640

Fire-Rated Counter Door
Model 640

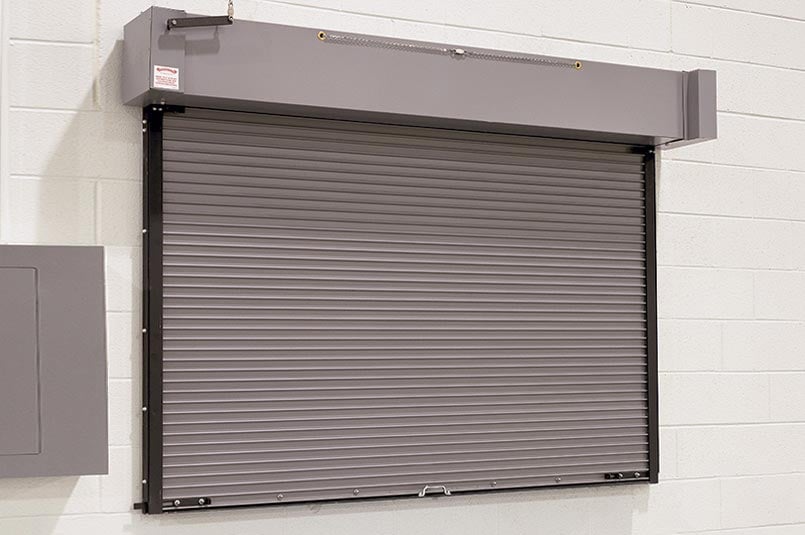

The Fire-Rated Rolling Counter Door Model 640
has exposed components made of primed galvanized steel, available in labels up to 3 hours. The 640 and 641 model doors are ideal for openings requiring a counter-type fire-rated door. Common applications include factories, schools, concessions, hospitals, cafeterias and retail settings. Added protection features, such as the Fire Sentinel®, horns and strobes are available. The Fire Sentinel® time-delay release device provides an added measure of safety to control the doors' closure.

The Fire-Rated Rolling Counter Door Model 641 feature 22-gauge steel and are ideal for applications where safety is as important as style. Fire-Rated Counter Door Model 641 has exposed components made of stainless steel.​ The 640 and 641 model doors are ideal for openings requiring a counter-type fire-rated door. Common applications include factories, schools, concessions, hospitals, cafeterias and retail settings. Added protection features, such as the Fire Sentinel®, horns and strobes are available. The Fire Sentinel® time-delay release device provides an added measure of safety to control the doors' closure.

Fire-Rated Counter Door Model 641

Fire-Rated Rolling Counter Door
Model 641

Fire-Rated Counter Door Model 660

Integral Frame Counter Fire Doors
Model 660

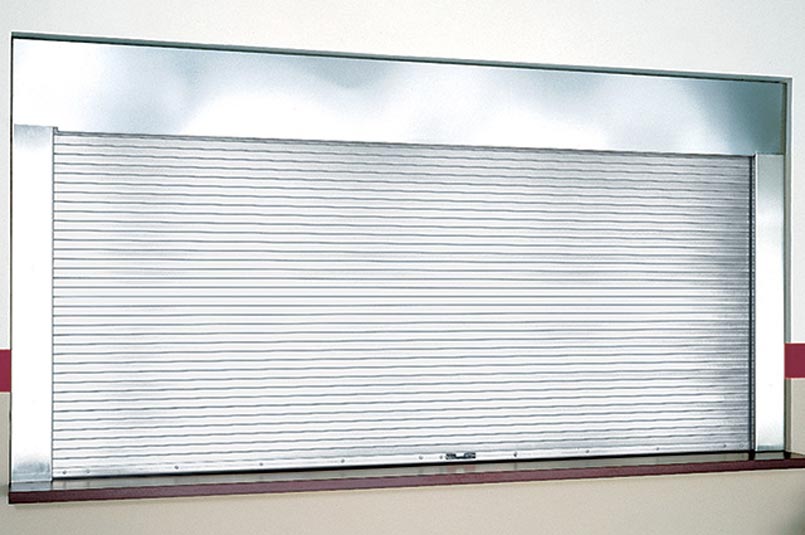

The Integral Frame Counter Fire Door Model 660
provides a handsome finished appearance for a variety of applications, including food service counters. Available for opening sizes up to 9'5” x 55” (2870 mm x 1346 mm), these doors carry a 1-1/2 hour UL Class B label and are factory assembled as a complete unit with fully welded frames. The frame comprises 16-gauge jambs and header, hood and fascia and is complemented by a 14-gauge sill. Added protection features, such as the Fire Sentinel® are available. The Fire Sentinel® time-delay release device provides an added measure of safety to control the doors' closure.

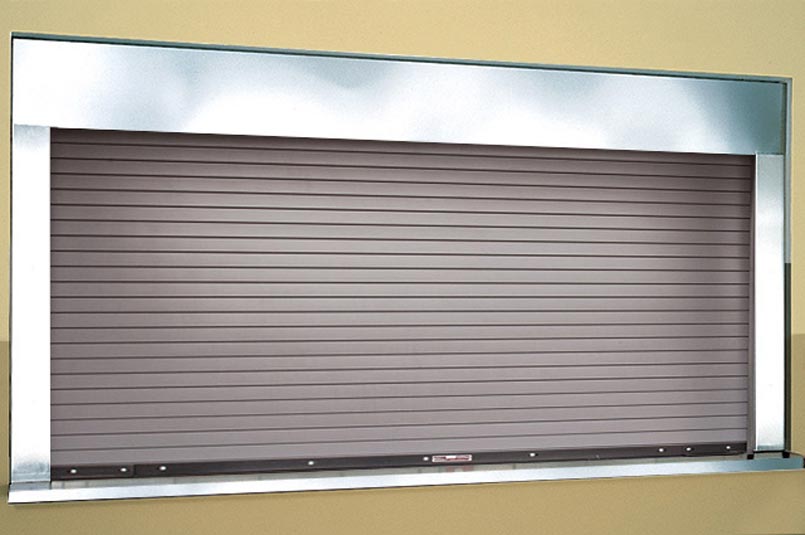

The Integral Frame Counter Fire Doors Model 662
also provides a handsome finished appearance for a variety of applications, including food service counters, as well as model 660. Available for opening sizes up to 9'5” x 55” (2870 mm x 1346 mm), these doors carry a 1-1/2 hour UL Class B label and are factory assembled as a complete unit with fully welded frames. The frame comprises 16-gauge jambs and header, hood and fascia and is complemented by a 14-gauge sill. Added protection features, such as the Fire Sentinel® are available. The Fire Sentinel® time-delay release device provides an added measure of safety to control the doors' closure.

Fire-Rated Counter Door Model 662

Integral Frame Counter Fire Doors
Model 662




FIRE-RATED DOOR DROP TEST & ANNUAL INSPECTIONS:


At Overhead Door Co. of Cetral Jersey, we offer a Fire Door Drop Tests and Annual Inspections to help building owners and managers stay compliant with the most recent NFPA 80 standards, while ensuring proper operation and full closure of their facility's rolling (rollup fire gates, roll-down fire shutters) and sliding fire doors.

CTA Fire Door Drop Test & Fire Door Annual Inspection


FIRE & SMOKE CURTAINS:

Our fire & smoke curtains are commonly used in airports, assurance buildings, automotive industry, banks, barracks, canteens, car dealerships, car parks, cinemas, cold storage rooms, commercial properties, food industry, furniture and hardware stores, historic monuments, homes for elderly, hospitals, hotels, industrial plants, kindergartens, museums, office buildings, public buildings, residential buildings, schools, shopping centres, timber industry, town halls, train stations, training centres, underground train stations, universities, warehouses.

Smoke Curtains NJ
Fire & Smoke Rated Curtain Systems

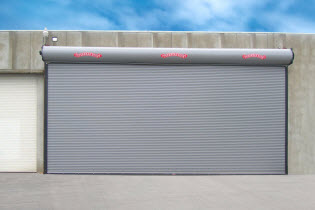

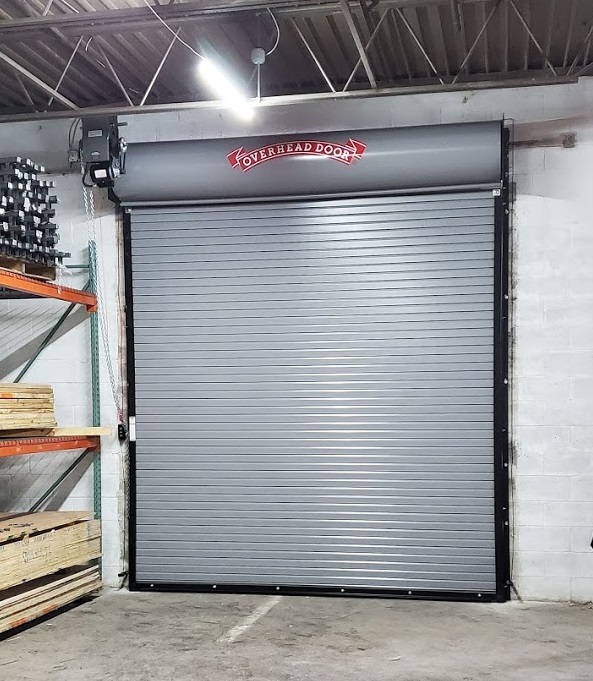

FIRE RATED DOOR PHOTO GALLERY:

Commercial Door Repairs

Contact Overhead Door Company of Central Jersey for all your commercial door repairs troubles— we'd be happy to discuss your requirements and pricing options.

We service & replace all manufacturers, brands and models of commercial and industrial garage doors and garage door operators.

Contact Our Team


Preventive Maintenance Plans for Commercial & Industrial Doors:

You should have your commercial overhead door serviced at least once a year if no other issues arise. It is important to have an adequate commercial and industrial door maintenance plan as it will prolong the life of your garage door while it helps you avoid costly emergency repairs and replacements.

Durability, reliability and economy are our top priorities​. Our top-quality materials and optional maintenance programs at low costs will contribute to extended door life, while maintaining your productivity.

Schedule Commercial Service
