What is Garage Door Headroom?

By Blog Master on 09 Dec 2019 In Low Headroom Track, standard headroom, zero clearance, lift clearance, high lift clearance, garage door headroom, garage door headspace

What is a garage door headroom; blogpost header photo; Residential garage door

There are several critical dimensions involved when discussing overhead garage doors and clearances required allowing for proper installation. One of the more confusing and least understood dimensions is headroom. What exactly is headroom and how does it matter to you when considering the purchase of new overhead garage doors? You might come across terms like standard headroom, low headroom, zero clearance, lift clearance and high lift clearance as you research garage doors.

 What is garage door headroom; Kinds of headroom; Standard Lift Headroom detail; High lift Headroom detail; Low headroom Headroom detaill

At Overhead Door Co. of Central Jersey, we answer questions regarding headroom on a daily basis. Headroom is defined as the available space over the door height.  Depending on the product selected required headroom for a standard installation is typically between 12 and 18 inches. So, if you are using a door that is seven feet high the typical minimum ceiling height would be eight feet, leaving twelve inches of headroom. There is a catch – this headroom must be consistent for the entire area the door will travel under. In other words, the headroom cannot be compromised by a ductwork chase, a support beam, lighting, or any other obstruction. Side entry doors that open into the area of the garage door track must be taken into consideration also, as they can create a conflict with the track. We often have someone report headroom measured solely at the area of the door, only to be surprised when we make a site inspection and inform them special tracking may be required or the desired door size will not work at all due to one or more of the obstructions mentioned above.

What is garage door headroom; Overhead Door Company of Central Jersey servicemen at work;residential garage door installation; garage door system installation

Photo Gallery for Installations by Overhead Door Company of Central Jersey

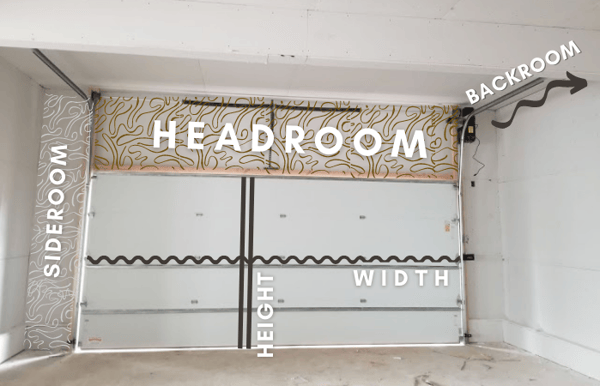

 There are solutions available to work overhead garage doors into headroom of less than 6 inches, referred to as low headroom hardware. There are also special track assemblies to elevate the door significantly where there is substantially more headroom in the garage. This is called lift clearance or high lift track and is used where the garage ceiling is quite high. This special tracking provides a very attractive appearance in these installations and also may allow for the use of a vehicle lift to store an additional car in the garage. In these special situations careful attention must be paid to pair the door product with an appropriate automatic garage door opener system.What is garage door headroom; Headroom, height, width, sideroom, backroom depth; garage door installation

Headroom is a very important consideration when designing your project. For example, if you would like a door that is eight feet high so you can fit a special purpose vehicle into the garage or because the added height compliments the appearance of the project, you must also be sure the garage ceiling can be at a minimum of nine feet from the floor, without any obstructions, for a basic standard lift door.

What is garage door headroom; Garage Door Headroom ; Residential Garage Door; Garage Door Installation, repair and service by Overhead Door Company of Central Jersey

As you can see, headroom is a relatively simple concept but there are many traps that need to be avoided when designing a project and ordering a door system that will fit and operate properly. The best advice we can offer is to involve your garage door professional early in the process. At Overhead Door Co. of Central Jersey, we are always available to provide design assistance to ensure an appropriate hardware selection for your project. Visit our showroom today at 952 Route 202 South at River Road, Branchburg, NJ, call at 908-722-5785 to speak to one of our professionals, or visit us on the web at www.OverheadDoorCo.com.
